Entity Typing (ET)

The ET module enhances triplets (subject-relation-object structures) extracted by the Information Extraction (IE) module by assigning specific semantic types to entities.

Table of contents

1. Architecture
2. Technical Components
   1. Main Pipeline (main.py)
   2. Entity Tagger (LLMTagger.py)
   3. LLM Integration (LLMCaller.py)
   4. Cost Tracking (usageCalculator.py)
3. Configuration
4. Usage Instructions
5. Input Format
6. Output Format
7. Entity Type Ontology

---

Architecture

ET/
├── main.py              # Entry point with different execution modes
├── LLMTagger.py         # Core tagging processor
├── LLMCaller.py         # LLM API interface
├── usageCalculator.py   # Tracks token usage and costs
└── config/              # Configuration directory
    └── example.yaml     # Default configuration file

Technical Components

Main Pipeline (main.py)

The entry point that orchestrates the tagging process:

@hydra.main(config_path="config", config_name="example", version_base="1.2")
def run(config: DictConfig):
    for CTI_source in os.listdir(config.inSet):
        # Skip already processed sources
        annotatedCTICource = [dir for dir in os.listdir(config.outSet)]
        if CTI_source in annotatedCTICource:
            continue

        # Process each file in source directory
        inFolder = os.path.join(config.inSet, CTI_source)
        for file in os.listdir(inFolder):
            LLMTagger(config).tag(CTI_source, file)

Entity Tagger (LLMTagger.py)

The LLMTagger class handles the complete entity typing workflow:

1. Input Processing:

   def tag(self, CTI_Source, file):
    inFile_path = os.path.join(self.config.inSet, CTI_Source, file)
    with open(inFile_path, 'r') as f:
        js = json.load(f)
        triples = js["IE"]["triplets"]


2. Prompt Generation:

   self.prompt = self.generate_prompt(triples)
   # Store generated prompt for reference
   folderPath = os.path.join(self.config.tag_prompt_store, CTI_Source)
   os.makedirs(folderPath, exist_ok=True)
   self.promptPath = os.path.join(folderPath, file.split('.')[0] + ".txt")
   with open(self.promptPath, 'w') as f:
    f.write(json.dumps(self.prompt[0]["content"], indent=4).replace("\\n", "\n").replace('\\"', '\"'))


3. LLM API Calling:

   self.response, self.response_time = LLMCaller(self.config, self.prompt).call()
   self.usage = UsageCalculator(self.response).calculate()
   self.response_content = json.loads(self.response.choices[0].message.content)


4. Result Storage:

   outfolder = os.path.join(self.config.outSet, CTI_Source)
   os.makedirs(outfolder, exist_ok=True)
   outfile_path = os.path.join(outfolder, file)
   with open(outfile_path, 'w') as f:
    js["ET"] = {}
    js["ET"]["typed_triplets"] = self.response_content["tagged_triples"]
    js["ET"]["response_time"] = self.response_time
    js["ET"]["Demo_num"] = self.config.shot


LLM Integration (LLMCaller.py)

Handles communication with the OpenAI API:

def call(self):
    client = OpenAI(api_key=self.config.api_key)
    startTime = time.time()
    response = client.chat.completions.create(
        model = self.config.model,
        response_format = { "type": "json_object" },
        messages = self.prompt,
        max_tokens= 4096,
    )
    endTime = time.time()
    response_time = endTime - startTime
    return response, response_time

Cost Tracking (usageCalculator.py)

Calculates token usage and associated costs:

def calculate(self):
    with open (model_price_menu, "r") as f:
        data = json.load(f)
    iprice = data[self.model]["input"]
    oprice = data[self.model]["output"]

    usageDict = {}
    usageDict["model"] = self.model
    usageDict["input"] = {
        "tokens": self.response.usage.prompt_tokens,
        "cost": iprice*self.response.usage.prompt_tokens
    }
    usageDict["output"] = {
        "tokens": self.response.usage.completion_tokens,
        "cost": oprice*self.response.usage.completion_tokens
    }
    usageDict["total"] = {
        "tokens": self.response.usage.prompt_tokens+self.response.usage.completion_tokens,
        "cost": iprice*self.response.usage.prompt_tokens+oprice*self.response.usage.completion_tokens
    }
    return usageDict

Configuration

The module uses Hydra for configuration management. Key parameters in example.yaml:

# Input/Output paths
inSet: <*>                # Input triplets directory
outSet: <*>               # Output directory

# Model configuration
model: <*>                # LLM model to use
api_key: <*>              # API key (recommend using environment variables)

# Prompt settings
tag_prompt_folder: <*>    # Directory with templates
tag_prompt_file: <*>      # Template file to use
tag_prompt_store: <*>     # Where to save prompts
shot: <*>                 # Number of examples in prompt

Usage Instructions

1. Configure Settings:
   • Set input directory with triplet files (from IE module)
   • Set output directory for typed results
   • Configure OpenAI API key (preferably using environment variables)
   • Select appropriate template and shot count
2. Run the Module:

   cd KGC/ET
   python main.py


Input Format

The module expects files containing extracted triplets from the IE module:

{
  "CTI": {
    "text": "Original CTI text...",
    "link": "source_link"
  },
  "IE": {
    "triplets": [
      {"subject": "APT28", "relation": "uses", "object": "Zebrocy"},
      {"subject": "Zebrocy", "relation": "targets", "object": "government entities"},
      {"subject": "APT28", "relation": "associated with", "object": "Russia"}
    ]
  }
}

Output Format

The module enhances the input files by adding an ET section with typed entities:

{
  "CTI": { ... },
  "IE": { ... },
  "ET": {
    "typed_triplets": [
      {
        "subject": {"text": "APT28", "type": "THREAT_ACTOR"},
        "relation": "uses",
        "object": {"text": "Zebrocy", "type": "MALWARE"}
      },
      {
        "subject": {"text": "Zebrocy", "type": "MALWARE"},
        "relation": "targets",
        "object": {"text": "government entities", "type": "ORGANIZATION"}
      },
      {
        "subject": {"text": "APT28", "type": "THREAT_ACTOR"},
        "relation": "associated with",
        "object": {"text": "Russia", "type": "LOCATION"}
      }
    ],
    "response_time": ...,
    "Demo_num": ...
  }
}

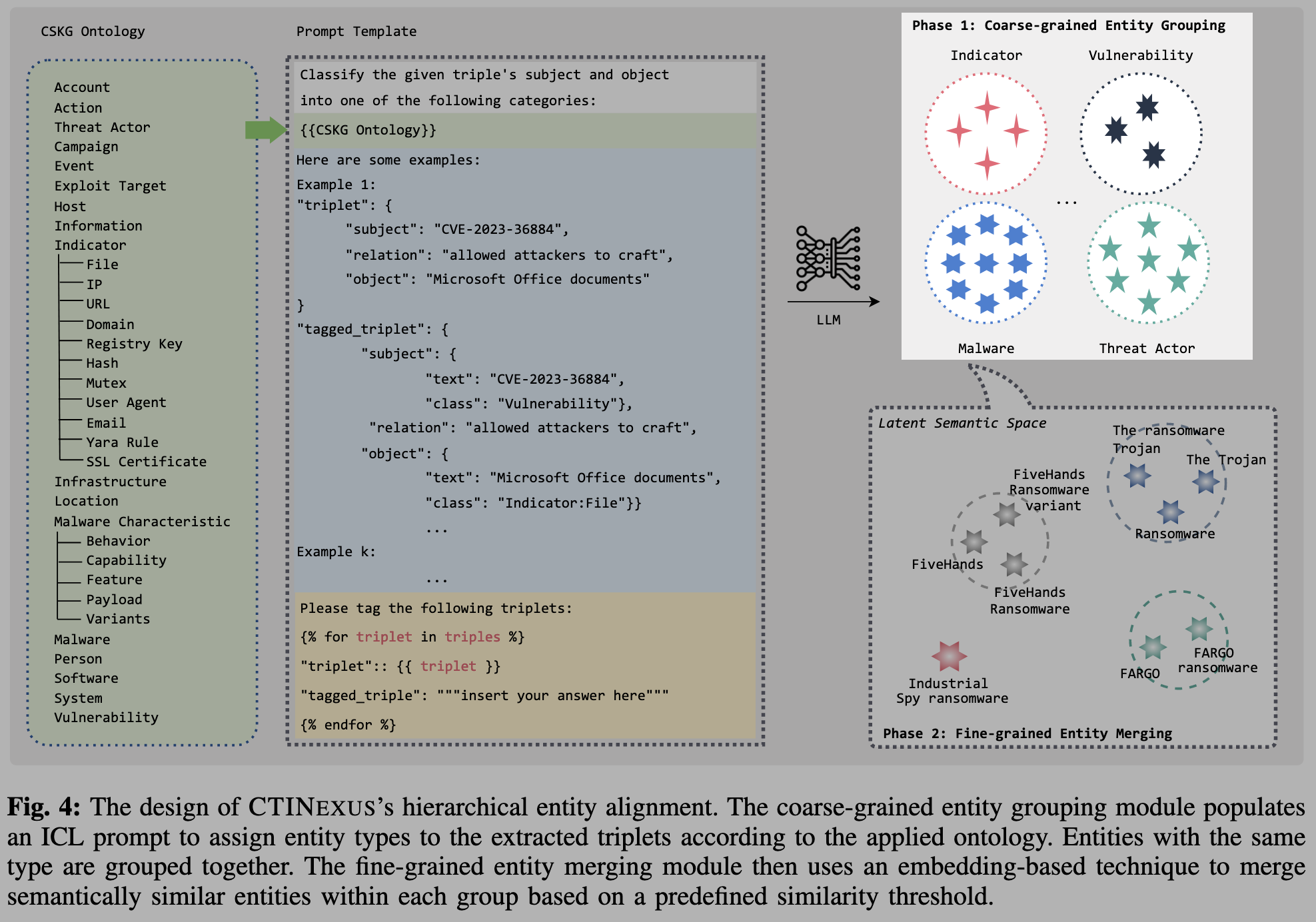

Entity Type Ontology

The module by default uses the MALONT ontology to assign types to entities, including:

[
    "Account",
    "Action",
    "Attacker",
    "Campaign",
    "Event",
    "Exploit Target Object",
    "Host",
    {
        "Indicator":[
            "Adress",
            "Email",
            "File",
            "Hash"
        ]
    },
    "Information",
    "Location",
    "Malware",
    "Malware Characteristic",
    "Malware Family",
    "Organization",
    "Software",
    "System",
    "Vulnerability",
    "This entity cannot be classified into any of the existing types"
]
